Floor Heating Thermostat

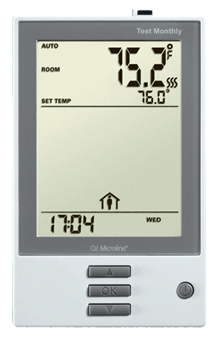

The Warmzone ComfortTile floor heating thermostats are specifically designed to control electric radiant
floor heating systems for maximum comfort and minimum power consumption. Developed for the modern home,
the programmable thermostat features a large back-lit display and simple user interface. The system temperature
is controlled by an external or built-in sensor.
Each floor heating thermostat also includes an integrated Ground Fault Circuit Interrupter (GFCI, Class A).
The thermostat is an electronic on/off thermostat for controlling temperature by means of a sensor
placed externally. The heat output is switched on and off with a difference of only 0.7°F (0.4°C).
The thermostat can be configured for control of floor temperature and regulator without sensor. It is
compatible with existing floor sensors by means of a temperature setting, making it the best thermostat for renovation purposes.
Designed for ease of use and superior performance,
Warmzone's floor heating thermostat and GFCI are dual voltage models suitable for 120/240V, 50/60 Hz power supplies.
The system is surprisingly easy to use and provides reliable,
energy-efficient operation for your radiant floor heating
system.
More Thermostat Information
|
Product Features
Large back-lit display for easy viewing and programming.
Fully programmable
Dual voltage; 120V and 240V
Built-in GFCI 5mA protection
Pre-programmed for quick setup installation
Four-event, seven-day energy savings
Monitored energy consumption
Two-year manufacturer warrantyTechnical Info
Temperature Range: 5º to 40ºC/+41ºF to 104ºF or OFF.
Floor Temperature Range: 0º to 40ºC/+32ºF to 104ºF
Dimensions: 118 x 74 x 48mm/4.65 x 2.90 x 1.90 inches
Output relay: 15A
|
